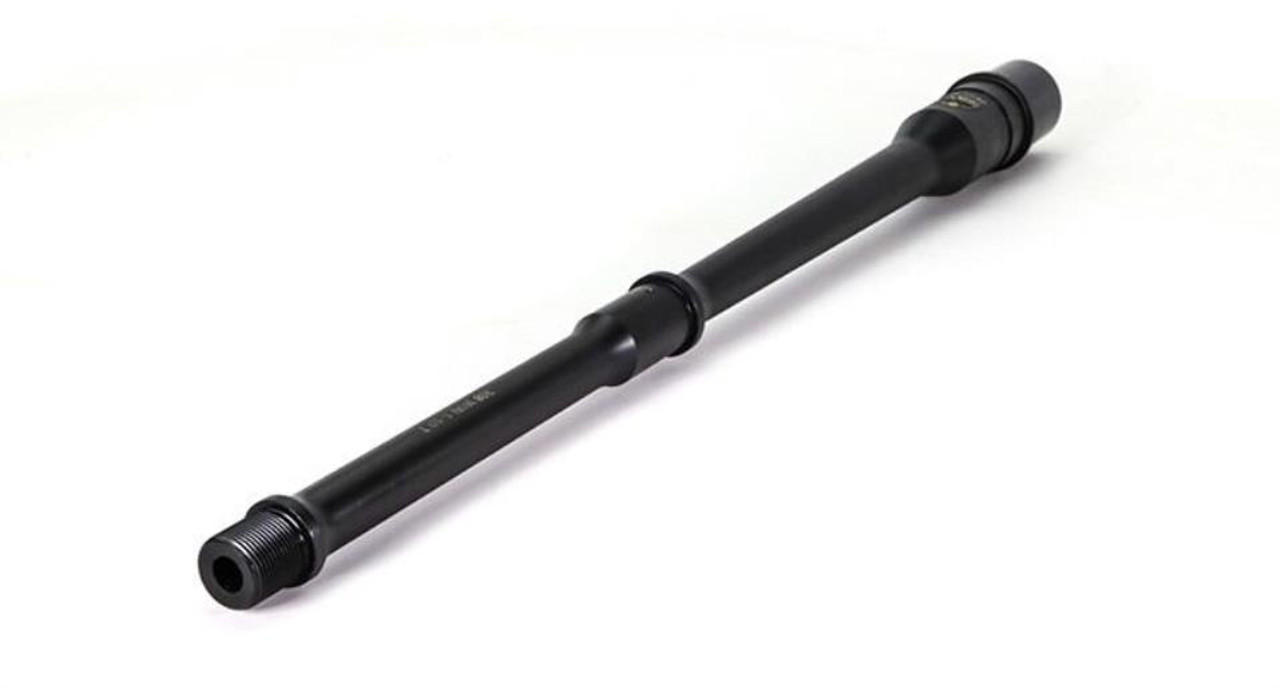

Faxon 16 Pencil .308 Win, Mid-Length 4150 QPQ Nitride 308 Win 7.62 NATO

Faxon 16 Pencil .308 Win, Mid-Length 4150 QPQ Nitride 308 Win 7.62 NATO

Faxon’s pencil barrels are renowned for their lightweight performance. Fully stress relieved, we carefully designed the barrel’s taper to remove weight while maintaining performance. The result is the lightest barrel in the industry – and one we are fully confident to put our Faxon shield on.

Faxon’s .308 barrels feature 1/10 twist rifling for full stabilization across all common .308 loadings. Our barrels are chambered to .308 Winchester SAAMI specification for maximum versatility. All our barrels are manufactured 100% in-house from cradle-to-grave, these barrels are fully stress relieved, air-gauge tested, and 11 degree target crowned to ensure superior accuracy.

Quality is imbued into our barrels from the start. We start with the best materials, either certified 4150 Mil-Spec steel or 416-R Stainless. From there, each barrel goes through a battery of tests at each operation until finished in Nitride and final inspected. All barrels are individually checked for headspace by precision custom hardened gauges.

Faxon manufactures all our barrels in Cincinnati, Ohio under our ISO:9001 and AS:9100 quality certifications.

• Barrel Material : 4150 GBQ
• Barrel Caliber : .308 WIN
• Barrel Length : 16”
• Barrel Profile : PENCIL
• Barrel Gas System : Mid
• Inside Finish : QPQ Salt Bath Nitride
• Outside Finish : QPQ Salt Bath Nitride
• Muzzle Thread : 5/8-24 TPI
• Gas Block Diameter : .750″
• Gas Port Diameter : .081″
• Gas Block Journal Length : 1.1″
• Barrel Extension : LR-308 (DPMS Compatible)
• Weight : 1.78 lbs
